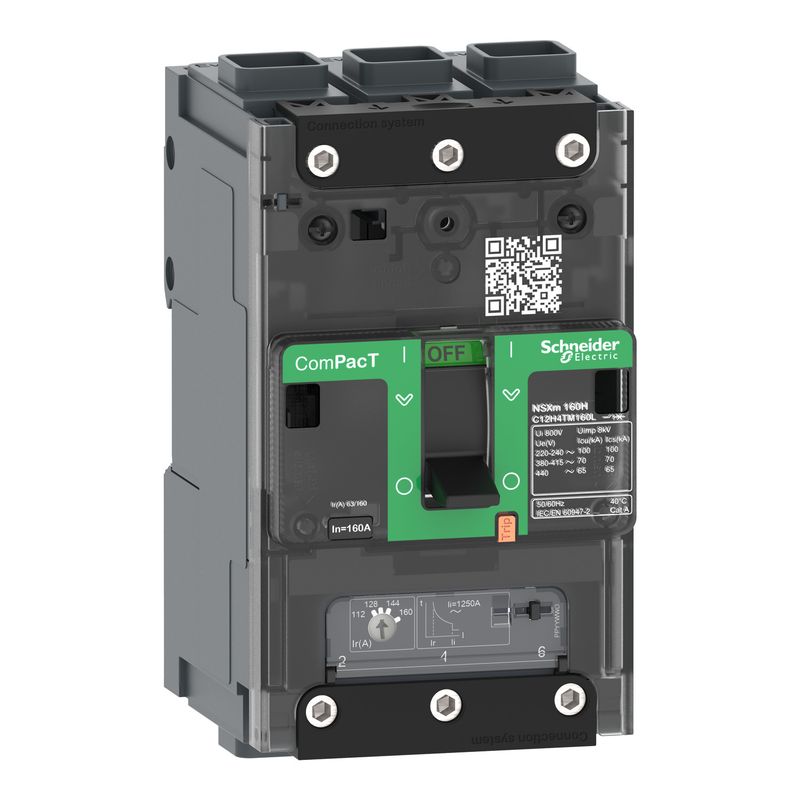

Key Features of NSXm N Everlink

1. Everlink Connection Technology
   • Ensures a reliable and consistent connection over time, reducing the risk of loose connections and the need for periodic retightening.
   • Maintains consistent clamping force, even under thermal cycling conditions, enhancing safety and reliability.
2. Compact Design
   • The NSXm series features a compact and space-saving design, making it suitable for installation in limited spaces and panelboards.
   • Available in frame sizes from 16A to 160A, providing flexibility for various application needs.
3. High Performance
   • Provides excellent performance in terms of breaking capacity and protection.
   • Suitable for a wide range of applications including industrial, commercial, and residential electrical distribution systems.
4. Comprehensive Protection
   • Offers protection against overloads, short circuits, and ground faults, ensuring the safety of electrical installations.
   • Equipped with adjustable thermal-magnetic trip units for precise protection settings.
5. Ease of Installation and Maintenance
   • Designed for easy and quick installation with the Everlink technology simplifying the connection process.
   • Reduced maintenance requirements due to the stable and reliable connections provided by Everlink.
6. Communication Capabilities
   • Some models are equipped with communication capabilities for integration into energy management and monitoring systems.
   • Supports Modbus communication for seamless integration with Schneider Electric’s EcoStruxure™ Power and other building management systems.
7. Versatile Mounting Options
   • Can be mounted on DIN rails or backplates, offering flexibility in installation to suit different panel designs and configurations.

Benefits

1. Enhanced Safety
   • Reliable connections reduce the risk of electrical faults and fires caused by loose connections.
2. Reduced Maintenance
   • Everlink technology minimizes the need for periodic retightening, lowering maintenance costs and efforts.
3. Space Efficiency
   • Compact design allows for efficient use of space in electrical panels, making it suitable for retrofitting and new installations.
4. Flexibility
   • Wide range of frame sizes and adjustable protection settings provide versatility for various applications.
5. Integration
   • Communication capabilities allow for advanced energy management and monitoring, contributing to better energy efficiency and system reliability.

Applications

• Industrial Facilities
  • Protection and distribution in manufacturing plants, warehouses, and processing facilities.
• Commercial Buildings
  • Reliable electrical distribution for office buildings, shopping centers, and hotels.
• Residential Complexes
  • Ensuring safe and efficient power distribution in large residential buildings and complexes.
• Data Centers
  • Providing reliable protection and distribution for critical data center infrastructure.

By utilizing the NSXm N Everlink range, you can achieve reliable and efficient electrical distribution with reduced maintenance needs and enhanced safety. These circuit breakers are an excellent choice for a wide range of low-voltage applications, providing robust protection and long-term reliability.
