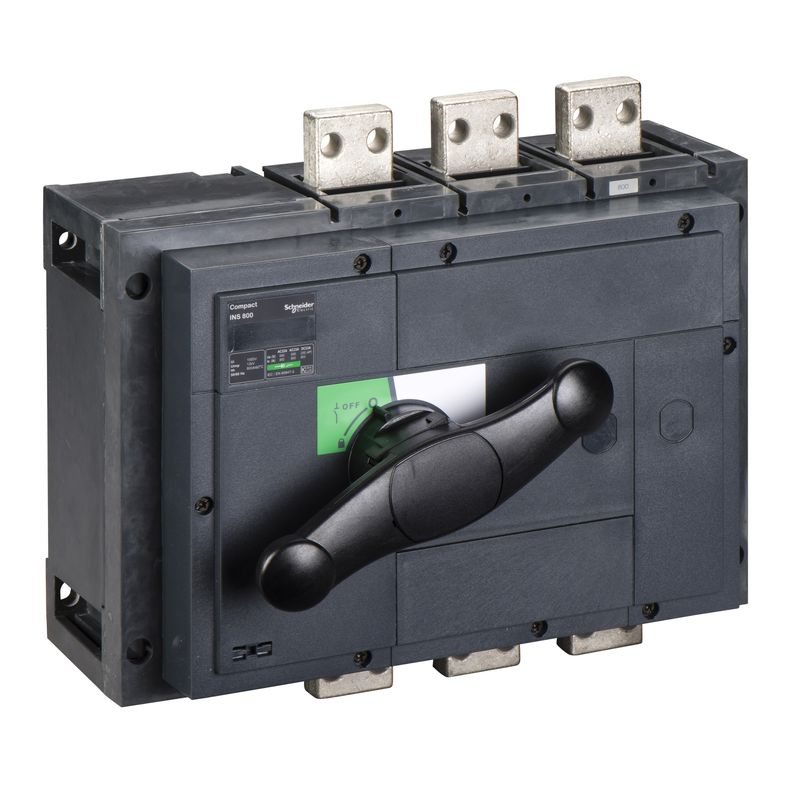

Compact INS800-1600
The ComPacT INS1600 Switch-Disconnector is a robust and reliable device from Schneider Electric designed to provide safe isolation and protection in electrical distribution systems. Here are the key features and details of the INS1600:
Key Features
- High Current Rating:
- Rated up to 1600 A, suitable for a wide range of applications.
- Ensures the safe disconnection and isolation of electrical circuits.
- Robust Design:
- Built to withstand harsh industrial environments.
- Provides reliable operation and long service life.
- Safety and Compliance:
- Complies with international standards for safety and performance.
- Offers clear position indication (ON/OFF) to enhance safety.
- Flexible Installation:
- Can be installed in various positions to accommodate different installation requirements.
- Available with different mounting options for ease of integration.
- Modular Accessories:
- Compatible with a range of accessories for customization.
- Options include auxiliary contacts, shunt trips, and undervoltage releases.
- Ease of Use:
- User-friendly design with ergonomic handle for manual operation.
- Clear labeling and accessible terminals for straightforward installation and maintenance.
Technical Specifications
- Rated Current: 1600 A
- Rated Operational Voltage: Typically up to 690 V AC
- Number of Poles: Available in 3-pole and 4-pole configurations
- Short-Circuit Withstand: High short-circuit withstand capacity
- Mechanical Endurance: High mechanical durability with a large number of operating cycles
Applications
- Industrial Facilities: Providing safe isolation and protection for machinery and equipment.
- Commercial Buildings: Ensuring reliable power distribution and safety in commercial settings.
- Renewable Energy: Suitable for disconnecting and isolating renewable energy sources such as solar and wind power systems.
- Utilities: Used in electrical substations and distribution networks for safe isolation and maintenance.
Advantages
- Enhanced Safety: Ensures the safe disconnection of electrical circuits, protecting personnel and equipment.
- Reliability: Designed for high reliability and long service life, even in demanding environments.
- Flexibility: Modular design allows for easy customization and integration into various systems.
- User-Friendly: Simplifies installation, operation, and maintenance with ergonomic and accessible design.
Would you like more detailed information on a specific aspect, such as installation guidelines, available accessories, or integration with other Schneider Electric products?
