Choosing the correct circuit breaker for your electrical system is essential for safety, efficiency, and compliance. Whether you're designing a new industrial installation or upgrading an old one, the circuit breaker plays a critical role in protecting people, equipment, and infrastructure.

However, selecting the wrong type can lead to system failure, unnecessary downtime, or even dangerous accidents. That's why working with experienced electrical component suppliers is key to making informed decisions.

Here's a comprehensive guide on how to choose the right circuit breaker for your application:

1. Understand the Type of Load and Application

Before choosing a breaker, identify the type of load it will protect:

• Resistive loads (lighting, heating)
• Inductive loads (motors, compressors)

Different loads require different types of breakers. For instance, inductive loads need breakers with a higher short-circuit capacity to handle startup surges.

2. Know the Voltage and Current Ratings

The voltage and current ratings of the circuit breaker must match your application. Common ratings include:

• Voltage: 230V, 400V, or 690V depending on the system
• Current: Ranges from a few amps to thousands

Make sure the breaker's rating covers both the nominal and peak current levels.

3. Consider the Breaking Capacity

Breaking capacity (also called interrupting capacity) is the maximum current a breaker can safely interrupt. This should be greater than the potential fault current at the installation point.

Your electrical component suppliers can help perform calculations or recommend suitable options.

4. Choose the Right Trip Curve

Trip curves determine how fast a breaker trips under overcurrent conditions. Common types include:

• Type B: Trips between 3–5 times rated current (residential use)
• Type C: Trips between 5–10 times (commercial/light industrial)
• Type D: Trips between 10–20 times (industrial motors, transformers)

Selecting the right curve ensures proper protection without nuisance tripping.

5. Account for Environmental Conditions

Temperature, humidity, dust, and altitude can all affect a breaker's performance. Choose circuit breakers with suitable enclosures (e.g., IP-rated) if installed outdoors or in harsh environments.

6. Select the Appropriate Mounting and Form Factor

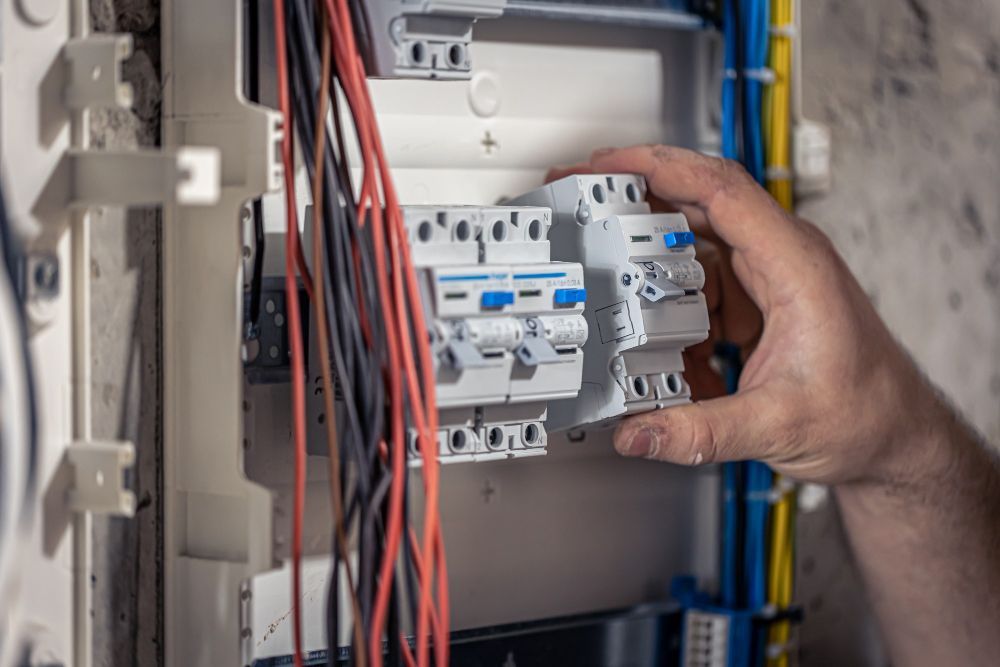

• DIN Rail Mounting: Common for modular panels
• Panel Mounting: For custom enclosures or industrial cabinets

Breakers also come in various sizes and forms: miniature (MCB), molded-case (MCCB), or air circuit breakers (ACB), depending on the scale.

7. Check Compliance with Standards

Ensure the circuit breaker meets international standards such as:

• IEC 60898 (for MCBs)
• IEC 60947-2 (for MCCBs)

Using certified products from trusted electrical component suppliers guarantees safety and regulatory compliance.

8. Work with Reliable Electrical Component Suppliers

Choosing a supplier is as important as choosing the component. Reputable suppliers offer:

• Access to global brands (Schneider Electric, ABB, Siemens)
• Technical guidance and after-sales support
• Fast delivery and inventory availability

They help ensure you get the right breaker for your system the first time.

Final Thoughts

Selecting the correct circuit breaker is not just about matching numbers—it's about understanding the full context of your application. Collaborating with experienced electrical component suppliers in Singapore can simplify the process, reduce risk, and ensure your systems are safe and reliable.

Need expert help finding the perfect breaker for your next project? Contact us today for customized support and fast delivery.
