⚡ TeSys GV Motor Circuit Breakers

TeSys GV motor circuit breakers (GV2, GV3, GV4) are Schneider Electric’s all‑in‑one motor protection devices, combining short‑circuit protection, motor overload protection, and manual disconnection in a single compact unit.

Your ATS130 document shows GV3P and GV4PB breakers used as the primary protection for ATS130 soft starters:

“ TeSys Deca frame 3 and frame 4 thermal magnetic circuit breakers… provide short‑circuit and motor overload protections. ”

This is the core purpose of TeSys GV breakers.

---

🔧 Key Points (Short & Clear)

• Thermal‑magnetic protection — protects motors against overloads & short circuits.
• Manual disconnection — acts as a local isolator for maintenance.
• Trip indication — clear status for overload or short‑circuit events.
• Compact & modular — integrates with TeSys contactors and overload relays.
• EverLink terminals(GV3/GV4) — vibration‑proof, maintenance‑free tightening.
• Global certifications — IEC, UL, CSA, CCC, EAC.

---

🧩 TeSys GV Families (In One Glance)

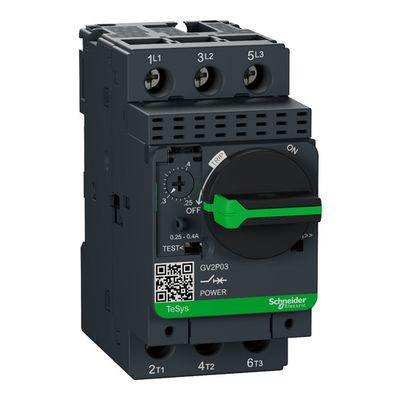

1) GV2 — Compact breakers for small motors

• Up to ~32 A
• Ideal for small DOL starters and control panels

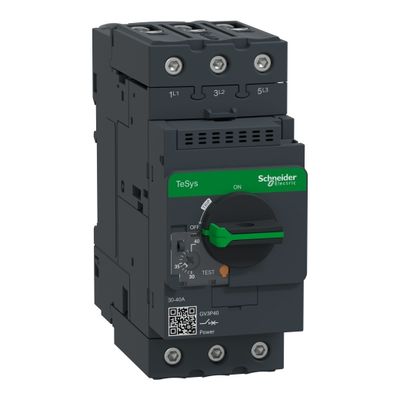

2) GV3 — Medium‑power motors

• Up to ~65 A
• Used extensively with ATS130 (GV3P40…GV3P65)
• Your document lists:

  “GV3P401”, “GV3P501”, “GV3P651”

3) GV4 — High‑performance, high‑fault‑level breakers

• Up to ~115 A
• High SCCR options (B, N, S codes)
• Your document lists:

  “GV4PB115” with SCCR selection table

---

🏭 Typical Applications

• Motor starters — DOL, reversing, star‑delta
• Soft‑starter protection — ATS130 + GV3/GV4 tested combinations
• Pumps & fans
• Compressors
• Industrial panels

---

⭐ One‑line summary

TeSys GV motor circuit breakers provide compact, reliable, all‑in‑one motor protection — overload, short‑circuit, and isolation — perfectly coordinated with TeSys contactors and ATS130 soft starters.
