Schneider Electric's TeSys series of contactors is widely recognised for its performance, reliability, and versatility in various applications such as motor control, power distribution, and automation systems. Here's a comprehensive overview of the TeSys LC contactor series:

Overview of TeSys LC Contactors

1. TeSys LC1-K

• Design: Compact and space-saving.
• Applications: Suitable for controlling small motors, lighting, heating, and other small loads.
• Specifications:
  • Current rating up to 12A.
  • Voltage rating up to 690V.
• Features:
  • DIN rail mounting.
  • Auxiliary contacts available for additional control functions.

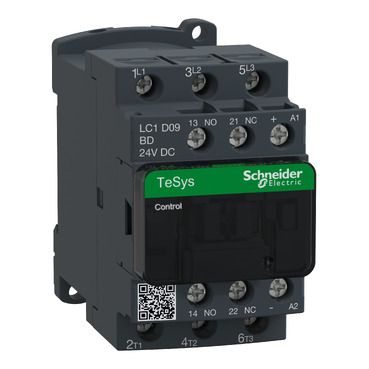

2. TeSys LC1-D

• Versatility: General-purpose contactor for a wide range of applications.
• Applications: Commonly used in industrial and commercial settings, such as HVAC systems, conveyor systems, and pumping systems.
• Specifications:
  • Current ratings range from 9A to 150A.
  • Voltage ratings up to 690V.
• Features:
  • High mechanical and electrical durability.
  • Various coil voltages available.
  • Modular design for easy integration with auxiliary contacts and overload relays.

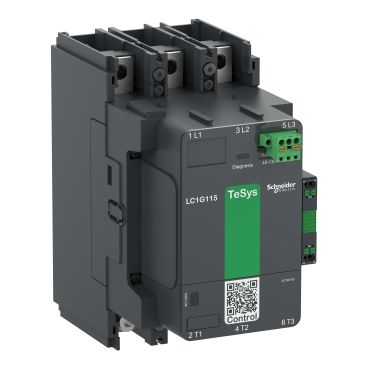

3. TeSys LC1-G

• Heavy-Duty Performance: Designed for high-current applications.
• Applications: Suitable for large industrial machinery, motor control centres, and power distribution systems.
• Specifications:
  • Current ratings up to 800A.
  • Suitable for AC-3 applications (motor starting and stopping).
• Features:
  • High breaking capacity.
  • Enhanced contact life for demanding environments.

4. TeSys LC1-F

• High-Power Capability: Ideal for very high current and heavy-duty applications.
• Applications: Used in heavy industrial settings, including power distribution, large motors, and heavy machinery.
• Specifications:
  • Current ratings up to 1000A.
  • Voltage ratings up to 1000V.
• Features:
  • High short-circuit current withstand.
  • Robust design for reliable performance in harsh conditions.

Common Features of TeSys LC Contactors

• Safety: Compliance with international standards (IEC, UL, CSA).
• Efficiency: Low-power consumption coils for energy savings.

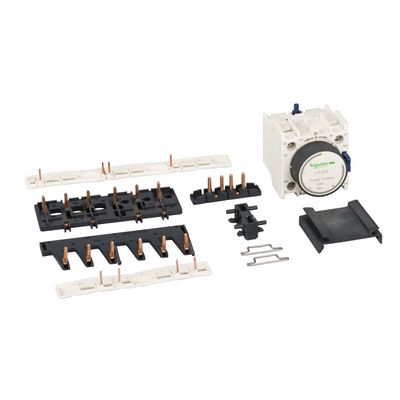

• Flexibility: A wide range of accessories and auxiliary contacts available.
• Integration: Seamless integration with Schneider Electric�۪s motor control and protection devices.

Applications

• Motor Control: Starting, stopping, reversing, and protecting motors in various industrial applications.
• Lighting Control: Efficient switching of large lighting loads.
• Heating Control: Controlling electric heaters and heating elements.
• Power Distribution: Reliable switching and control of power distribution systems in industrial environments.

Key Benefits

• Reliability: Proven performance in demanding applications.
• Durability: High mechanical and electrical endurance.
• Ease of Use: Simple installation and maintenance.
• Versatility: Suitable for a broad range of applications.
