TeSys accessories
are the modular add‑ons that expand, adapt, and integrate Schneider Electric’s TeSys motor‑control components — including contactors, overload relays, and circuit breakers.
They enable signalling, interlocking, mounting, coordination, and connection
functions essential for building complete motor‑starter architectures.
Your ATS130 document shows several accessory types used with TeSys Deca breakers and LC1D contactors, including auxiliary contacts, fixing kits, and EverLink terminals.
🔧 Key Accessory Categories (Short & Clear)

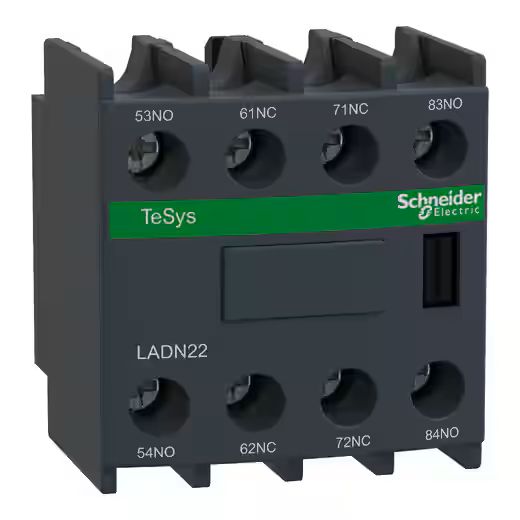

- Auxiliary contact blocks
Add NO/NC signalling for Open/Close, Trip, Fault, and Short‑circuit indication.
Examples from your document:“GVAE11”, “GVAM11”, “GV4AE11” — auxiliary blocks for GV3/GV4 breakers.
- Fixing & mounting kits
Allow mechanical attachment of TeSys Deca breakers to ATS130 soft starters.
Your document lists:“VW3G921304”, “VW3G921305” — fixing kits for GV3/GV4 to ATS130.
- EverLink terminals
Vibration‑proof, maintenance‑free power terminals used on some TeSys Deca breakers. - Mechanical interlocks

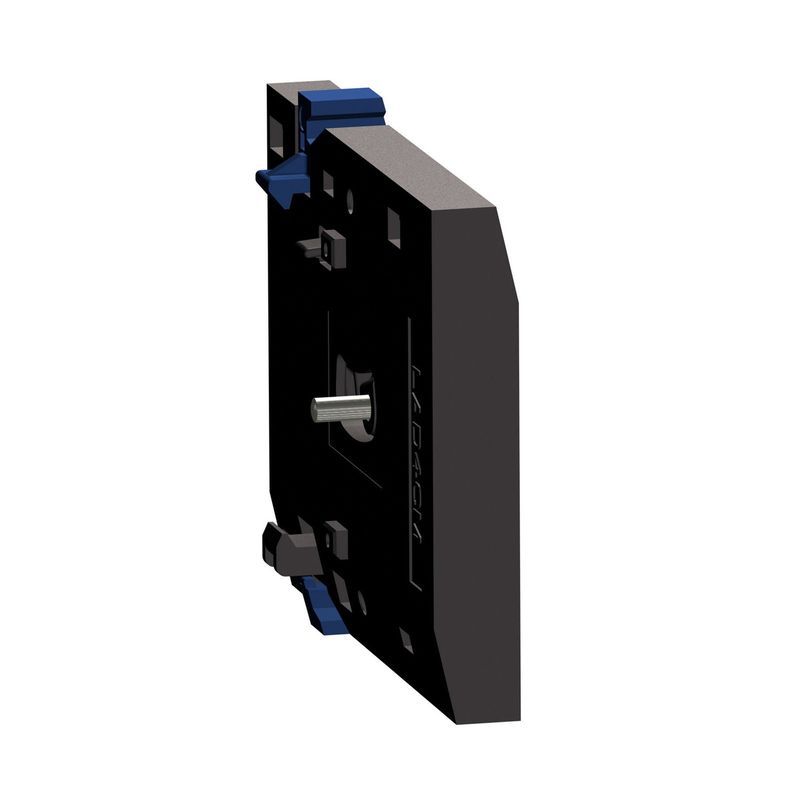

Prevent simultaneous closing of two contactors (e.g., reversing starters). - Coil suppressors & surge protection
Protect control circuits and extend coil life. - Busbars & power connectors
Simplify wiring between contactors, overload relays, and breakers. - Add‑on modules
Timers, latch blocks, and logic accessories for advanced control.
🧩 Accessories Shown in Your Uploaded Document
Your ATS130 catalogue explicitly includes:
- Auxiliary contact blocks
for GV3/GV4
“1 NO + 1 NC”, “1 C/O”, “Trip alarm SD”, “Short‑circuit signalling”
- Fixing kits
for assembling ATS130 + TeSys Deca
“The fixing kit allows easy mounting of the circuit breaker… and proper cooling of the ATS130.”
- Copper bar kits
for frame‑4 breakers
Included in VW3G921305 for GV4PB models.
These accessories enable the compact soft‑starter assembly described in the catalogue.
🏭 What TeSys Accessories Enable
- Complete motor‑starter assemblies
- Coordination with ATS130 soft starters
- Enhanced signalling & diagnostics
- Safe mechanical interlocking
- Simplified wiring & installation
⭐ One‑line summary
TeSys accessories provide the signalling, mounting, interlocking, and connection functions that turn TeSys contactors and breakers into complete, coordinated motor‑starter solutions.
