Monitoring Relay
⚡ Harmony Monitoring Relays
Harmony Monitoring Relays from Schneider Electric are specialised devices designed to supervise electrical and process parameters and detect abnormal operating conditions in industrial environments. They help protect equipment, improve reliability, and ensure safe operation.
Harmony monitoring relays are available in two technologies:

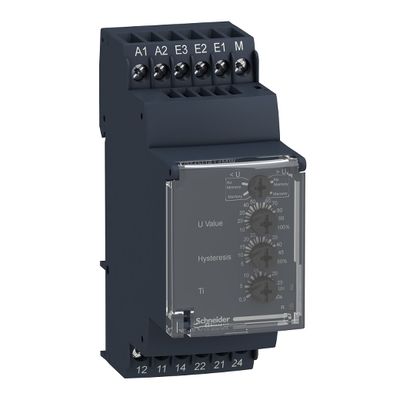

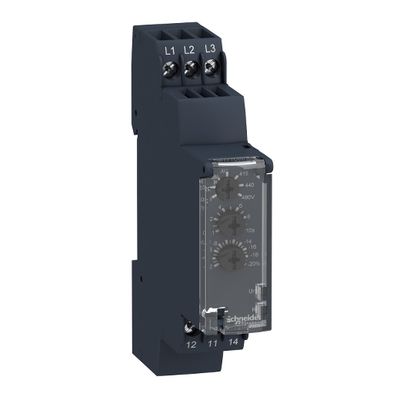

- Conventional dial models for quick, manual adjustment

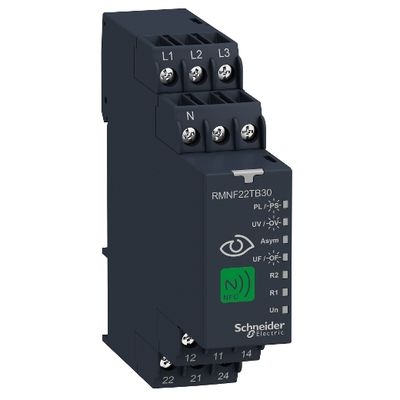

- NFC‑enabled models for fast, digital configuration using smartphones or tablets
🔧 Key Functions of Harmony Monitoring Relays
1. Multi‑parameter Monitoring
They continuously monitor critical parameters such as:
- Phases (loss, reversal, imbalance)
- Current
- Voltage
- Frequency
- Temperature
- Speed
- Liquid levels
- Operating rates
This ensures real‑time visibility of system health.
2. Abnormal Condition Detection
Harmony relays detect deviations from normal operation, including:
- Overcurrent / undercurrent
- Overvoltage / undervoltage
- Phase faults
- Underfrequency
- Overtemperature
- Low liquid levels
- Abnormal process speeds
They provide early warnings or trip outputs to prevent equipment damage and downtime.
3. Control Actions
Based on detected conditions, the relay can:
- Trigger alarms
- Trip circuits
- Initiate shutdown sequences
- Adjust process parameters
This makes them ideal for protection + automation in one device.
4. Dial & NFC Configuration
Two configuration options provide flexibility:
- Dial‑type relays — simple, tactile, and fast to set
- NFC relays
— programmable via smartphone/tablet for:
- Faster commissioning
- Copy/paste settings
- Reduced human error
🏭 Applications of Harmony Monitoring Relays
• Power distribution
Detect faults, overloads, and voltage issues.
• Motor protection
Monitor current, voltage, and temperature to prevent motor damage.
• Process automation
Monitor levels, speeds, and operating rates for stable production.
• Environmental monitoring
Used in HVAC and climate‑controlled systems.
⭐ One‑line summary
Harmony Monitoring Relays provide reliable, multi‑parameter supervision and fault detection to protect equipment and ensure safe, efficient industrial operation.
