Contactors: Complete Overview, Features, and Applications
In the world of modern electrical installations, contactors play a crucial role in managing and controlling electrical circuits. Among the most trusted and efficient solutions is the Acti 9 iCT Modular Contactors by Schneider Electric. This compact yet powerful device is designed for seamless integration with power meters , superior reliability, and intelligent control of electrical loads. Whether in residential, commercial, or industrial applications, the Acti 9 iCT ensures safety, durability, and precision performance with time relays.

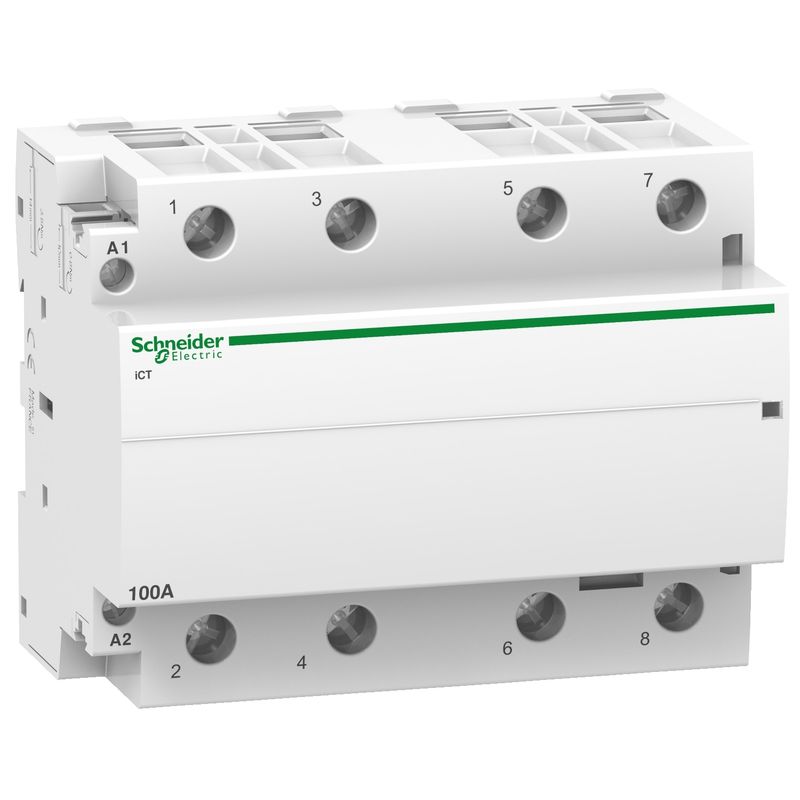

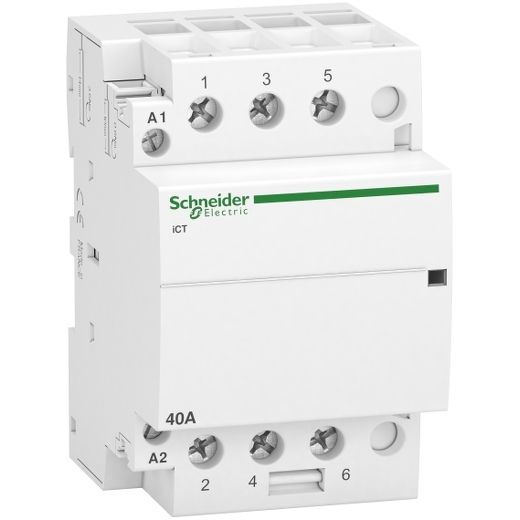

What is the Acti 9 iCT Modular Contactors?
The Acti 9 iCT is a modular contactors developed by Schneider Electric, one of the global leaders in energy management and automation. It belongs to the renowned Acti 9 range, which includes products specifically designed to enhance electrical safety, modularity, and ease of installation.
Unlike conventional contactors, the Acti 9 iCT is a DIN-rail mountable device, making it ideal for modern electrical panels. It provides electrical control over various loads such as lighting, motors, and heating systems, either remotely or automatically based on control signals.
With its modular design and wide range of current ratings (up to 100 A), it’s a versatile solution suitable for industrial, commercial, and residential environments.
Modular Design and Construction
The Acti 9 iCT is built using a modular architecture, meaning each component can be easily mounted, removed, or replaced on a DIN rail. This simplifies installation, expansion, and maintenance in electrical distribution panels.
Key design advantages include:
- Compact size: Saves space in panels while maintaining functionality.
- Standardized dimensions: Compatible with other Acti 9 components like MCBs, RCCBs, and auxiliaries.
- Simple wiring: Terminals are designed for quick, error-free connections.
- Enhanced safety: Insulated components and clear markings reduce installation risks.
This modular construction ensures easy scalability for future electrical expansions or upgrades without major rewiring.
Rated Current and Performance
The Acti 9 iCT contactors supports currents up to 100 A, offering flexibility across multiple applications. This wide current capacity allows it to handle both low-power control systems and high-demand electrical loads efficiently.
The performance of this modular contactors is further enhanced by:
- High electrical endurance: Designed to withstand thousands of operating cycles without degradation.
- Low coil consumption: Reduces overall energy usage, making it eco-efficient.
- Quiet operation: Ideal for residential and commercial environments where noise reduction matters.
- Thermal and magnetic protection: Safeguards circuits from overload or fault conditions.
These features ensure reliable operation even in demanding environments like factories, offices, and building automation systems.
Consistency within the Acti 9 Range
One of the biggest advantages of the iCT Modular Contactor is its compatibility with the entire Acti 9 range. This includes circuit breakers (MCBs), residual current devices (RCDs), surge protection devices (SPDs), and auxiliaries.
Such compatibility means:
- Seamless integration within the Acti 9 system.
- Uniform aesthetics and design.
- Simplified inventory and maintenance.
- Consistent performance and interoperability across components.
For installers and panel designers, this unified system saves both time and cost, ensuring a cohesive setup that enhances system reliability.
Electrical Control and Functionality
The primary function of the Acti 9 iCT modular contactors is to control electrical circuits remotely or automatically. It can be switched on and off by sending control signals through its coil circuit.
Typical control applications include:
- Lighting control(e.g., automatic switching in buildings).
- HVAC systems(heating, ventilation, air conditioning).
- Motor control(in factories and automation systems).
- Load management(reducing peak energy consumption).
This level of automation enhances energy efficiency, provides flexibility, and ensures operational convenience for users.
Applications of Acti 9 iCT Modular Contactors
The versatility of the Acti 9 iCT makes it suitable for numerous applications, such as:
- Industrial Applications
- Motor starters and control systems.
- Machinery automation and conveyor systems.
- Load management for production lines.
- Commercial Applications
- Lighting and HVAC control for office buildings, hotels, and retail outlets.
- Energy-saving solutions for smart building automation.
- Centralized control in large electrical installations.
- Residential Applications
- Automated lighting systems.
- Heating and water pump control.
- Smart home energy management systems.
By using the Acti 9 iCT, users achieve better energy efficiency, greater safety, and simpler control mechanisms, all of which contribute to modern, sustainable electrical infrastructure.
Reliability and Safety
Schneider Electric is well-known for manufacturing robust and safe electrical devices, and the Acti 9 iCT continues this tradition. It is built to international standards, ensuring compliance and reliability in every environment.
Some safety and performance highlights include:
- Long electrical life: Capable of thousands of on/off cycles.
- High mechanical durability: Designed for frequent operations.
- Insulation and isolation: Prevents accidental contact and short circuits.
- Optional auxiliary modules: Allow for signaling, status monitoring, or additional control functions.
This makes the iCT modular contactor a dependable solution for both high-demand and sensitive environments where operational stability is essential.
Benefits of Using Acti 9 iCT Modular Contactors
- Ease of Installation
- Snap-fit design for quick mounting on DIN rails.
- Easy terminal access for faster wiring.
- Compact and Modular
- Saves panel space and offers scalable configuration.
- Energy Efficiency
- Reduces energy wastage by controlling loads intelligently.
- Reliable Switching
- Consistent and smooth performance even under heavy load.
- Low Maintenance
- Designed for long service life with minimal upkeep.
- Full System Compatibility
- Works seamlessly with other Acti 9 components, ensuring consistent quality and appearance.
Why Choose Schneider Electric Acti 9 iCT?
The Acti 9 iCT Modular Contactor is more than just an electrical control device—it’s part of a complete smart energy management ecosystem. For professionals who value efficiency, safety, and design consistency, this product offers everything required for modern installations.
Whether it’s for building automation, industrial equipment, or energy optimization, the iCT ensures top-tier performance with Schneider’s trusted engineering excellence.
FAQs About Acti 9 iCT Modular Contactor
1. What is the difference between a contactor and a relay?
A contactor is designed for switching higher power loads like motors or lighting systems, while a delay relay is typically used for low-power control signals. The Acti 9 iCT functions as a contactor capable of handling up to 100 A, making it ideal for high-demand applications.
2. Can the Acti 9 iCT be used for lighting control?
Yes, absolutely. The Acti 9 iCT is commonly used for lighting control, both in residential and commercial buildings. It allows users to remotely or automatically switch lighting circuits, improving convenience and reducing energy costs.
3. How do I install the Acti 9 iCT?
Installation is simple thanks to its modular DIN-rail design. Mount it on the rail, connect the power and control wiring, and integrate it into your existing Acti 9 system. Always ensure a qualified electrician performs the installation according to Schneider Electric’s guidelines.
4. What current ratings are available for the Acti 9 iCT?
The Acti 9 iCT modular contactors come in multiple current ratings—ranging up to 100 A. This allows users to select the right model based on their load requirements, ensuring safe and efficient operation.
Conclusion
The Acti 9 iCT Modular Contactor by Schneider Electric is a versatile, reliable, and efficient device designed for modern electrical control systems. Its modularity, wide application range, and seamless compatibility with the Acti 9 ecosystem make it a top choice among electricians, contractors, and engineers worldwide.
By integrating the Acti 9 iCT into your setup, you not only ensure better energy management but also enhance safety, performance, and convenience —key factors in any advanced electrical installation.
